STGW19NC60HD
STGW19NC60HD

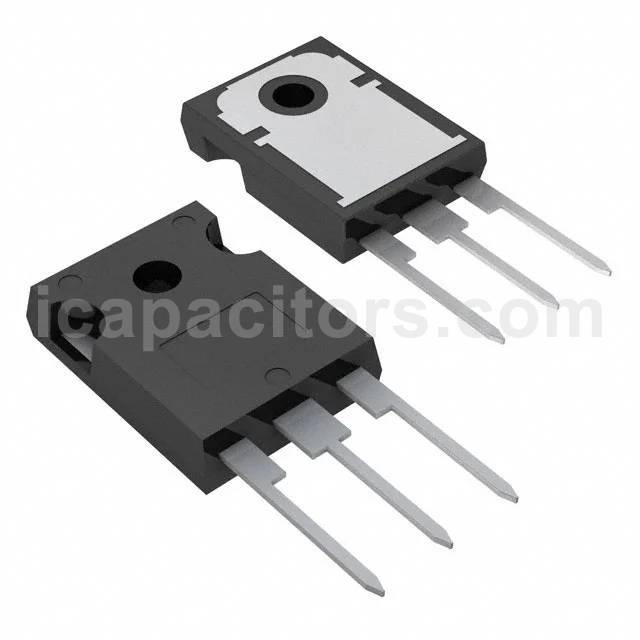

Part Number STGW19NC60HD Description IGBT 600V 42A 140W TO247 Package / Case TO-247-3Unit Price Request a QuoteLead Time To be ConfirmedDetailed Description IGBT 600V 42A 140W Through Hole TO-247 Long Leads
To learn about the specification of STGW19NC60HD, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add STGW19NC60HD with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of STGW19NC60HD.
We are offering STGW19NC60HD for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
STGW19NC60HD - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet STGx19NC60HD Standard Package 30 Manufacturer STMicroelectronics Series PowerMESH™ Packaging Tube Part Status Active IGBT Type - Voltage - Collector Emitter Breakdown (Max) 600V Current - Collector (Ic) (Max) 42A Current - Collector Pulsed (Icm) 60A Vce(on) (Max) @ Vge, Ic 2.5V @ 15V, 12A Power - Max 140W Switching Energy 85µJ (on), 189µJ (off) Input Type Standard Gate Charge 53nC Td (on/off) @ 25°C 25ns/97ns Test Condition 390V, 12A, 10Ohm, 15V Reverse Recovery Time (trr) 31ns Operating Temperature -55°C ~ 150°C (TJ) Mounting Type Through Hole Package / Case TO-247-3 Supplier Device Package TO-247 Long Leads Base Part Number STG*19NC
