SGP02N120XKSA1
SGP02N120XKSA1

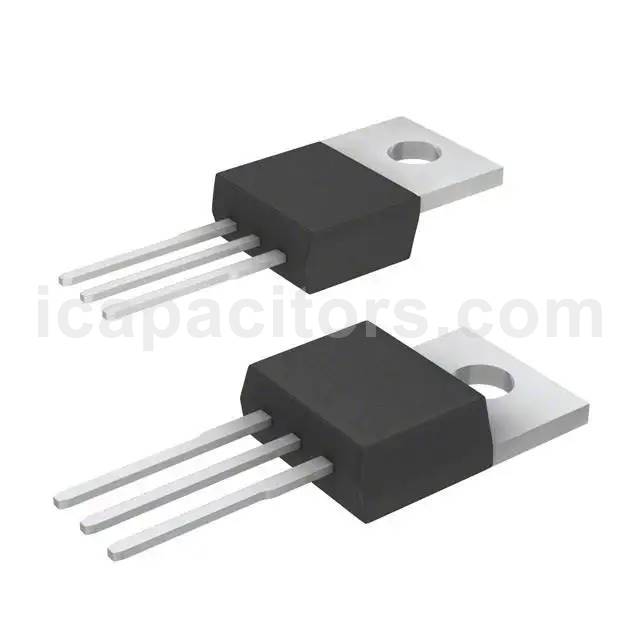

Part Number SGP02N120XKSA1 Description IGBT 1200V 6.2A 62W TO220-3 Package / Case TO-220-3Unit Price Request a QuoteLead Time To be ConfirmedDetailed Description IGBT NPT 1200V 6.2A 62W Through Hole PG-TO220-3
To learn about the specification of SGP02N120XKSA1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SGP02N120XKSA1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SGP02N120XKSA1.
We are offering SGP02N120XKSA1 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
SGP02N120XKSA1 - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet SGx02N120 Standard Package 500 Manufacturer Infineon Technologies Series - Packaging Tube Part Status Not For New Designs IGBT Type NPT Voltage - Collector Emitter Breakdown (Max) 1200V Current - Collector (Ic) (Max) 6.2A Current - Collector Pulsed (Icm) 9.6A Vce(on) (Max) @ Vge, Ic 3.6V @ 15V, 2A Power - Max 62W Switching Energy 220µJ Input Type Standard Gate Charge 11nC Td (on/off) @ 25°C 23ns/260ns Test Condition 800V, 2A, 91Ohm, 15V Operating Temperature -55°C ~ 150°C (TJ) Mounting Type Through Hole Package / Case TO-220-3 Supplier Device Package PG-TO220-3
