IRGB30B60KPBF
IRGB30B60KPBF

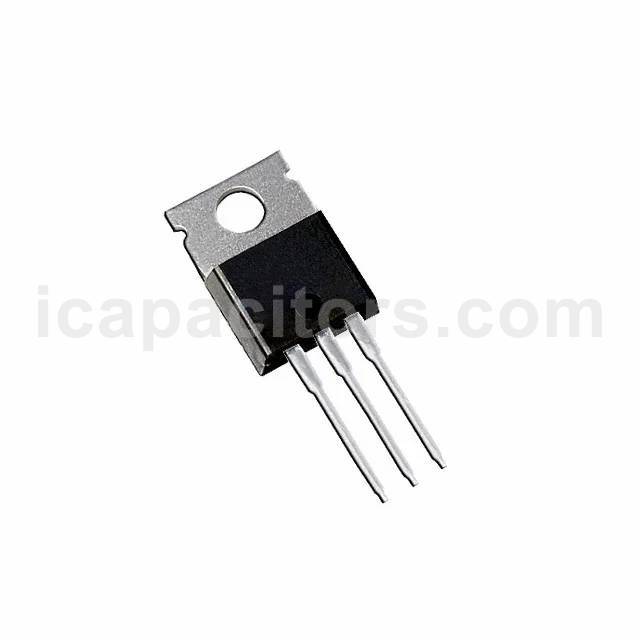

Part Number IRGB30B60KPBF Description IGBT 600V 78A 370W TO220AB Package / Case TO-220-3Unit Price Request a QuoteLead Time To be ConfirmedDetailed Description IGBT NPT 600V 78A 370W Through Hole TO-220AB
To learn about the specification of IRGB30B60KPBF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IRGB30B60KPBF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IRGB30B60KPBF.
We are offering IRGB30B60KPBF for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
IRGB30B60KPBF - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet IRG(B,S,SL)30B60KPbF Standard Package 1000 Manufacturer Infineon Technologies Series - Packaging Tube Part Status Not For New Designs IGBT Type NPT Voltage - Collector Emitter Breakdown (Max) 600V Current - Collector (Ic) (Max) 78A Current - Collector Pulsed (Icm) 120A Vce(on) (Max) @ Vge, Ic 2.35V @ 15V, 30A Power - Max 370W Switching Energy 350µJ (on), 825µJ (off) Input Type Standard Gate Charge 102nC Td (on/off) @ 25°C 46ns/185ns Test Condition 400V, 30A, 10Ohm, 15V Operating Temperature -55°C ~ 175°C (TJ) Mounting Type Through Hole Package / Case TO-220-3 Supplier Device Package TO-220AB
