IKW15N120H3FKSA1
IKW15N120H3FKSA1

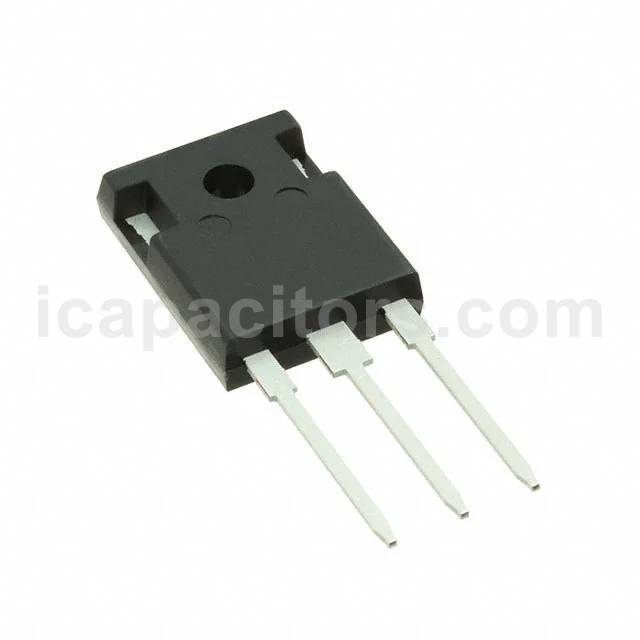

Part Number IKW15N120H3FKSA1 Description IGBT 1200V 30A 217W TO247-3 Package / Case TO-247-3Unit Price Request a QuoteLead Time To be ConfirmedDetailed Description IGBT Trench Field Stop 1200V 30A 217W Through Hole PG-TO247-3
To learn about the specification of IKW15N120H3FKSA1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IKW15N120H3FKSA1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IKW15N120H3FKSA1.
We are offering IKW15N120H3FKSA1 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
IKW15N120H3FKSA1 - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet IKW15N120H3 Standard Package 240 Manufacturer Infineon Technologies Series TrenchStop® Packaging Tube Part Status Active IGBT Type Trench Field Stop Voltage - Collector Emitter Breakdown (Max) 1200V Current - Collector (Ic) (Max) 30A Current - Collector Pulsed (Icm) 60A Vce(on) (Max) @ Vge, Ic 2.4V @ 15V, 15A Power - Max 217W Switching Energy 1.55mJ Input Type Standard Gate Charge 75nC Td (on/off) @ 25°C 21ns/260ns Test Condition 600V, 15A, 35Ohm, 15V Reverse Recovery Time (trr) 260ns Operating Temperature -40°C ~ 175°C (TJ) Mounting Type Through Hole Package / Case TO-247-3 Supplier Device Package PG-TO247-3
