FGH40N60SMD
FGH40N60SMD

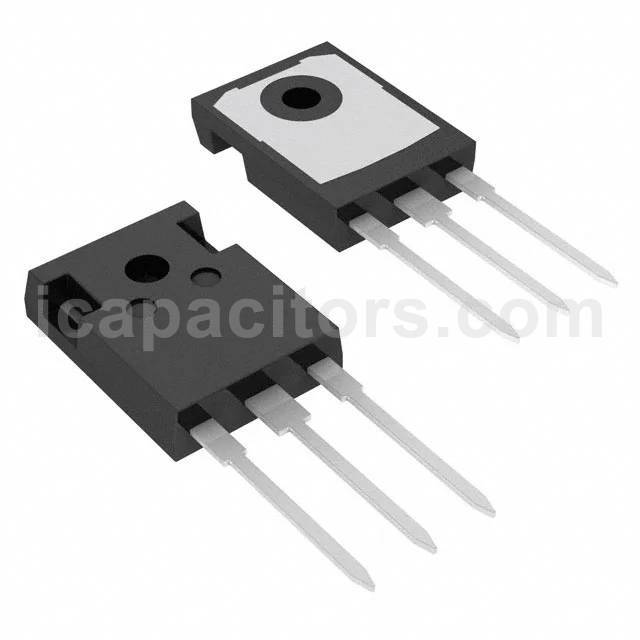

Part Number FGH40N60SMD Description IGBT 600V 80A 349W TO-247-3 Package / Case TO-247-3Unit Price Request a QuoteLead Time To be ConfirmedDetailed Description IGBT Field Stop 600V 80A 349W Through Hole TO-247-3
To learn about the specification of FGH40N60SMD, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FGH40N60SMD with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FGH40N60SMD.
We are offering FGH40N60SMD for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
FGH40N60SMD - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet FGH40N60SMD Standard Package 450 Manufacturer ON Semiconductor Series - Packaging Tube Part Status Active IGBT Type Field Stop Voltage - Collector Emitter Breakdown (Max) 600V Current - Collector (Ic) (Max) 80A Current - Collector Pulsed (Icm) 120A Vce(on) (Max) @ Vge, Ic 2.5V @ 15V, 40A Power - Max 349W Switching Energy 870µJ (on), 260µJ (off) Input Type Standard Gate Charge 119nC Td (on/off) @ 25°C 12ns/92ns Test Condition 400V, 40A, 6Ohm, 15V Reverse Recovery Time (trr) 36ns Operating Temperature -55°C ~ 175°C (TJ) Mounting Type Through Hole Package / Case TO-247-3 Supplier Device Package TO-247-3 Base Part Number FGH40N60
