FGA20N120FTDTU
FGA20N120FTDTU

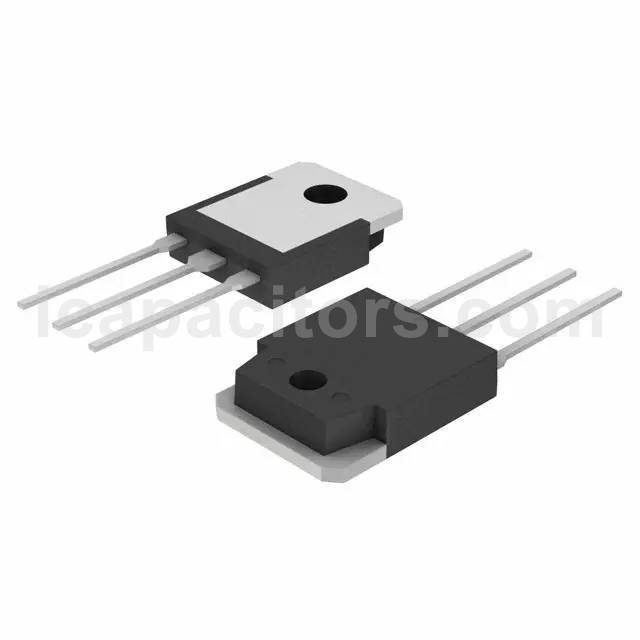

Part Number FGA20N120FTDTU Description IGBT 1200V 40A 298W TO3PN Package / Case TO-3P-3, SC-65-3Unit Price Request a QuoteLead Time To be ConfirmedDetailed Description IGBT Trench Field Stop 1200V 40A 298W Through Hole TO-3P
To learn about the specification of FGA20N120FTDTU, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FGA20N120FTDTU with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FGA20N120FTDTU.
We are offering FGA20N120FTDTU for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
FGA20N120FTDTU - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet FGA20N120FTD Standard Package 450 Manufacturer ON Semiconductor Series - Packaging Tube Part Status Active IGBT Type Trench Field Stop Voltage - Collector Emitter Breakdown (Max) 1200V Current - Collector (Ic) (Max) 40A Current - Collector Pulsed (Icm) 60A Vce(on) (Max) @ Vge, Ic 2V @ 15V, 20A Power - Max 298W Switching Energy - Input Type Standard Gate Charge 137nC Td (on/off) @ 25°C - Test Condition - Reverse Recovery Time (trr) 447ns Operating Temperature -55°C ~ 150°C (TJ) Mounting Type Through Hole Package / Case TO-3P-3, SC-65-3 Supplier Device Package TO-3P
