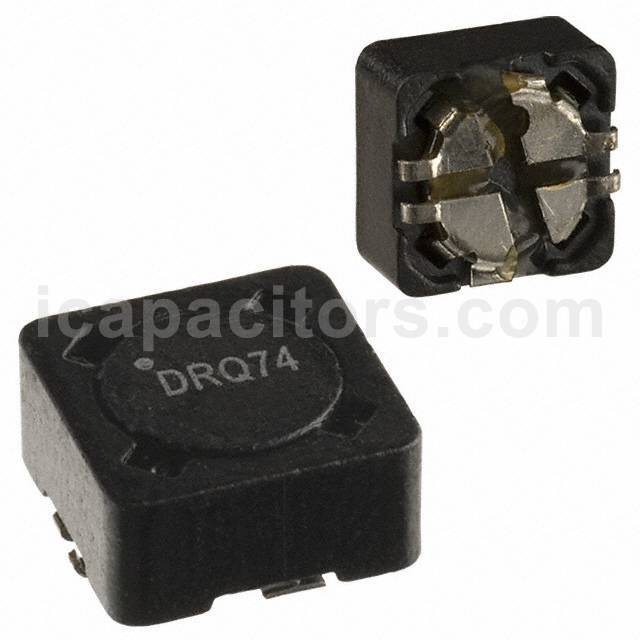

DRQ74-100-R


DRQ74-100-R

Part NumberDRQ74-100-R

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

DRQ74-100-R - Product Attributes

Categories Inductors, Coils, Chokes / Arrays, Signal Transformers
Datasheet
Standard Package1100
ManufacturerEaton - Electronics Division
SeriesDRQ
PackagingTape & Reel (TR)
Part StatusActive
Number of Coils2
Inductance - Connected In Parallel9.882µH
Inductance - Connected In Series39.53µH
Tolerance±20%
Current Rating - Parallel2.41A
Current Rating - Series1.2A
Current Saturation - Parallel3.17A
Current Saturation - Series1.58A
DC Resistance (DCR) - Parallel48.9mOhm
DC Resistance (DCR) - Series196mOhm
ShieldingShielded
Ratings-
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / CaseNonstandard
Size / Dimension0.299" L x 0.299" W (7.60mm x 7.60mm)
Height0.175" (4.45mm)
